USB C Docking Station Dual Displayport Monitor for Dell/Lenovo/HP Laptop,Quadruple Display USB-C Hub Multiple Monitor Adapter Dongle with 2 Display ports DP+HDMI+VGA+100W Type C PD Charging+3USB A 2.0

USB C Docking Station Dual Displayport Monitor for Dell/Lenovo/HP Laptop,Quadruple Display USB-C Hub Multiple Monitor Adapter Dongle with 2 Display ports DP+HDMI+VGA+100W Type C PD Charging+3USB A 2.0

$87.99 USD
$109.99 USD $87.99 USD
Sale Sold out
  • 【USB C Docking Station 8 IN 1】This usb c hub can easily expand your laptop from one type c/thunderbolt 3/4 port into 8 ports: ★2*DisplayPorts(4K@60Hz/30Hz), ★HDMI(4K@60Hz), ★VGA(1080P@60Hz),★USB C PD charging port(100W),★3 USB 2.0 ports(480Mbps).No need any drivers or software, just plug and play.NOTE!!! This docking station compatible with laptops with a Full-featured USB C port (with vidieo out put function). And the display port usb c adapter Not Support Using Converter.
  • 【Ultra HD 4K Dual DP & Triple Monitors Multiport Adapter】This docking station dual monitor can easily achieve dual monitors,triple displays and quad monitors for Windows laptop.While single use HDMI/DP1/2 resolution up to ★4K@60Hz, single use VGA resolution up to 1080@60Hz. ★When using DP1/2+HDMI, dual monitors will be 4K@60Hz and 4K@30Hz(DP1.4); ★When using HDMI+DP1+DP2, triple monitors will be 2*4K@60Hz+2K@60Hz (DP1.4); ★Display output will be 1080P when quadruple displays and multiple monitors with VGA.
  • 【100W Fast USB C Power Delivery Charging Port】Dell docking station supports up to 100W input and rated at 87W pass-through charging so you can power up your laptop while connecting multiple peripherals. ▲Note: Please make sure your laptop's USB C port support Power Delivery protocol. ▲Note: This laptop docking station is not included the power charger & charging cable.
  • 【High-Speed Data Transfer】This dual display port docking station equipped with 3 usb 2.0 ports, transfer speeds up to 480Mbps, allows you transfer files fast from your usb flash driver, usb hard disks or other USB A connected peripherals. Also, you can connect keyboard or mouse without any lags via the USB 2.0 ports.
  • 【Strong Compatibility】This usb c dock dongle hub multiport adapter compatible with all laptops with thunderbolt3/4/usb-c/type c(support vidieo out put), such as Dell Latitude 5330,5420,5430,5530,7420,9420;Inspiron;Vostro,XPS 13/15/17;HP Elitebook Zbook g7,g8;Probook,Lenovo t14s,Yoga 720/910/920/930,Thinkpad;Surface Pro 8/7/X/Go/Laptop 3,etc. ▲Note: This computer hub laptop dock multiple monitors adapter Not Support Using Converter.

    USB C Laptop Docking Station Dual Monitor for Dell/HP/Lenovo/Surface Triple Display Monitors USB C Hub Multiport Adapter

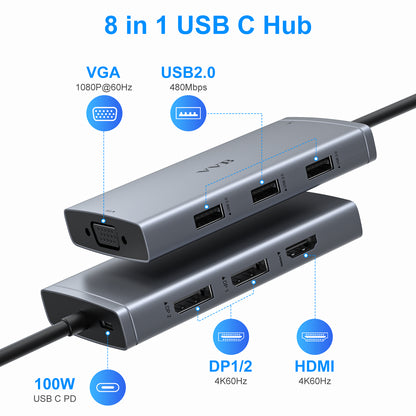

    Computer Docking Station Interface

    • HDMI1: Max resolution up to 4K@60Hz
    • DisplayPort1: Max resolution up to 4K@60Hz
    • DisplayPort2: Max resolution up to 4K@60Hz
    • VGA: Max resolution up to 1080P@60Hz
    • 3* USB 2.0: Speed up to 480Mbps
    • 1* 100W USB C power delivery charging port



  • Before purchase please Note:

    1. Please plug in the Laptop's power adapter to the USB-C Power Delivery port before using multiple displays.
    2. The hub temperature will heat up when it works. 0℃ - 50 ℃ is the normal and reasonable range.
    3. To use this product the host USB-C port from your device must support vidieo out put function for using display function, please confirm the type c port on your laptop supports video output.
    4. For Intel Graphics Laptop, only provides Three Display stream outputs at the same time.
    5. The final resolution of external displays depends on the laptop's specs and bandwidth,HDMI cable, external monitors and the "Displayport" protocol of the laptop usb c port.
    6. When connecting an external hard drive or multiple devices to this port replicator you may see "USB Power Consumption is too high"and your USB-C Port Replicator may cease working.This is normal self-protection activity for when USB connections exceed 1A of power,You'd better use the original charger to connect the laptop to charge.

    Vedio Output Resolution for Windows Laptops

    Dual Monitors Displays for Windows System Laptop

    • Maximum Resolution for DP 1.4 Windows laptop: DP1/DP2+HDMI=4K@60Hz+4K@30HZ,
    • Maximum Resolution for DP 1.2 Windows laptop: DP1/DP2+HDMI=4K@30Hz+4K@30HZ

    Triple Displays for for Windows System Laptop

    • Maximum Resolution for DP 1.4 Windows laptop: DP1+DP2+HDMI=4K@60Hz+4K@60HZ+2K@60HZ
    • Maximum Resolution for DP 1.2 Win laptop: DP1+DP2+HDMI=4K@30Hz+4K@30HZ+2K@60HZ

    Quadruple Displays for Windows System Laptop

    • Maximum Resolution for DP 1.4 Windows laptop: DP1+DP2+HDMI+VGA=4* 1080P@60Hz 1920 x 1080
    • Maximum Resolution for DP 1.2 Windows laptop: One of the external monitor resolution will lower than 1080P@60Hz 1920 x 1080

    NOTICES: For Intel Graphics Laptop, only provides Three Display data stream outputs at the same time.

    Vedio Output Resolution for Mac OS Laptops

    Dual Monitors for Mac OS system laptop(Same images)

    • Extend Mode support: ABB
    • Maximum Resolution for DP 1.4 Mac OS System: HDMI+DP1/DP2=4K@60Hz+4K@60Hz
    • Maximum Resolution for DP 1.2 Mac OS System: HDMI+DP1/DP2=4K@30Hz+4K@30Hz

    Triple Monitors for Mac OS system laptop(Same images)

    • Extend Mode support: ABBB
    • Maximum Resolution for DP 1.4 Mac OS System: HDMI+DP1+DP2= 3* 4K@60Hz
    • Maximum Resolution for DP 1.2 Mac OS System: HDMI+DP1+DP2= 3* 4K@30Hz

    Quadruple Displays for Mac OS system laptop(Same images)

    • Extend Mode support: ABBBB
    • DP1+DP2+HDMI+VGA: 4* 1080P@60Hz 1920 x 1080

    NOTICES: All external monitor images are same on MacOS due to OS system limit.

    100W USB C Power Delivery Charging

    1. This usb c hub displayport is not included the power charger & charging cable!
    2. Please make sure your laptop's USB C port support Power Delivery protocol. For the laptop with its own "round hole,slim tip" AC charging interface are not supported since the usb c port are not support Power Delivery protocol.
    3. Please use at least 65W power adapter to charge your laptop via this hub,using lower power charger may cause a low charging warning.

    Type C to Dual 4K DisplayPort

    • USB C to DisplayPort DP 1.4 Adapter supports up to dual 4K@60Hz, with this dp docking station connects the laptop with a Full-featured USB Type-C port to a monitor with DisplayPort. Note: Please make sure your laptop specification support DP1.4 signal output, or it will be 30HZ.

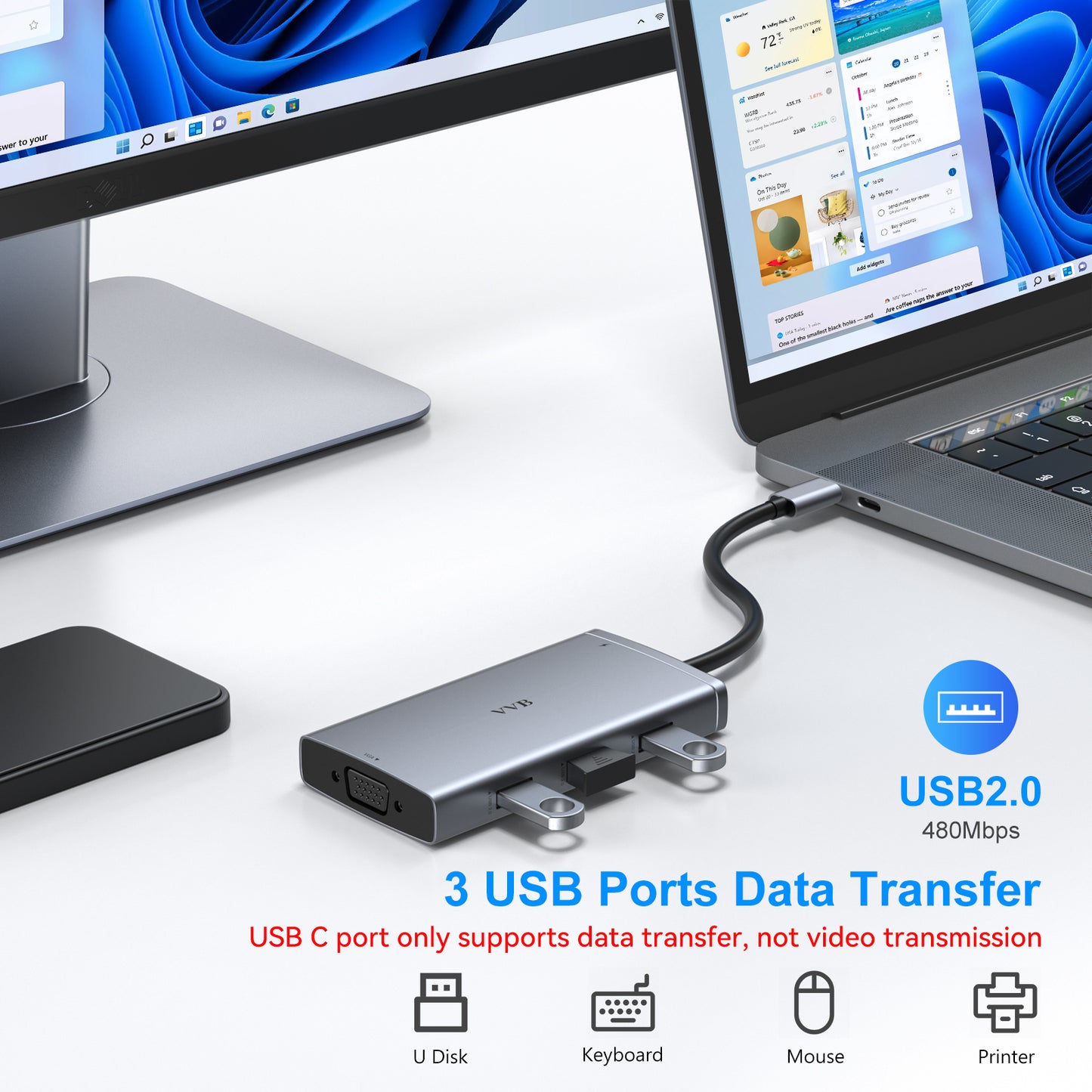

    3 USB A Data Transfer Ports

    • The dual dp docking station comes with 3 usb 2.0 ports, allows you connecting your wireless devices without signal interference. And the USB 2.0 Ports, speed up to 480Mbps,you can transfer files fast from your usb driver, usb hard disks.
